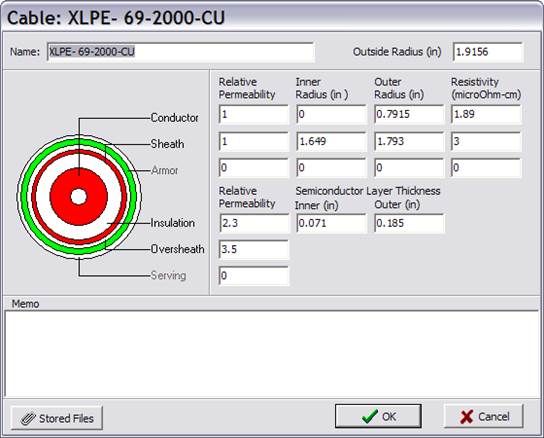

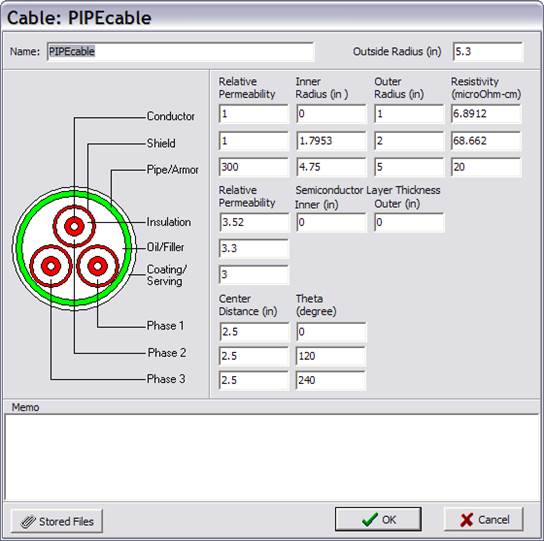

The following dialog boxes display the parameters of a single-core cable and a 3-phase pipe-type cable. These are referred to as “cable types”.

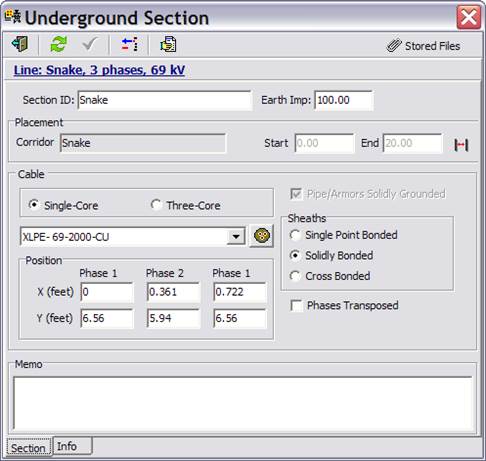

The Line Database also lets you define and manipulate cable sections. The next dialog box shows the configuration and parameters of a 3-phase cable section made up of three single-core cables of type XLPE-69-2000-CU (defined in a dialog box above). The sheaths of the three phase cables are solidly bonded.
